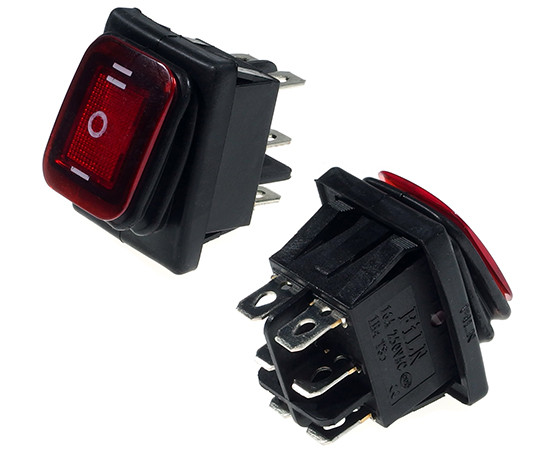

MIRS-203-5bcr; illuminated; rocker switch;

Symbol Micros: PRZ Mirs203-5bcr

221601

PRZ Mirs203-5bcr

Contractor Symbol:

Case : Rys.MIRS-203-5bcr

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF-ON; rocker red illumination; housing colour: black; SPDT; 4P; IP67; 16A 250VAC; 20A 125VAC; endurance: 20000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	16A 250V 20A 125V
Key button colour:	Red
Backlight colour:	Red
Switching method:	ON-OFF-ON
Contacts configuration:	DPDT
Body colour:	Black
Manufacturer:	N/A

All parameters

Manufacturer:: FILN Manufacturer part number: FL3-KCD4-203-5K Red RoHS Case style: Rys.MIRS-203-5bcr

In stock:

76 pcs.

Quantity of pcs.	1+	5+	50+	100+	300+
Net price (EUR)	1,8835	1,3968	1,1616	1,1334	1,1075

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/100 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	16A 250V 20A 125V
Key button colour:	Red
Backlight colour:	Red
Switching method:	ON-OFF-ON
Contacts configuration:	DPDT
Body colour:	Black
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A
Type of switch:	Button
