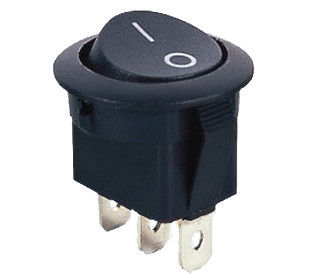

MRS-102-8C7 automotive switch

Symbol Micros: PRZ Mrs102-8c3b

51118

PRZ Mrs102-8c3b

Contractor Symbol:

Case : Rys.MRS102-8C7b

Datasheet

Technical drawing Technical drawing Add to favourites

16A; 12VDC; ON-ON; single pole; SPST; 3P; black; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Contacts rating:	16A 12VDC
Key button colour:	Black
Contacts configuration:	SPST
Switching method:	ON-ON
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	16A 12VDC
Key button colour:	Black
Contacts configuration:	SPST
Switching method:	ON-ON
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive
