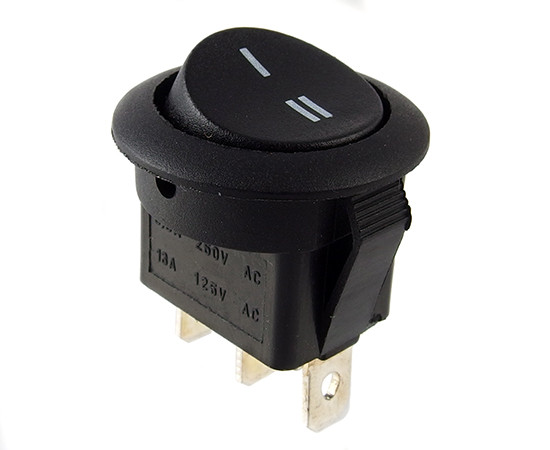

MRS102-8C7b; rocker switch;

Symbol Micros: PRZ Mrs1028c7b

81457

PRZ Mrs1028c7b

Contractor Symbol:

Case : Rys.MRS102-8C7b

Datasheet

Technical drawing Technical drawing Add to favourites

2 stable positions; ON-ON; cap colour: black; SPDT; 3P; 13A 125VAC or 6.5A 250VAC; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Contacts rating:	13A 125V 6.5A 250V
Key button colour:	Black
Contacts configuration:	SPDT
Switching method:	ON-ON
Operating temperature (range):	-25°C ~ 85°C
Body colour:	Black
Accessories type:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	13A 125V 6.5A 250V
Key button colour:	Black
Contacts configuration:	SPDT
Switching method:	ON-ON
Operating temperature (range):	-25°C ~ 85°C
Body colour:	Black
Accessories type:	N/A
Manufacturer:	N/A
Type of switch:	Rocker
