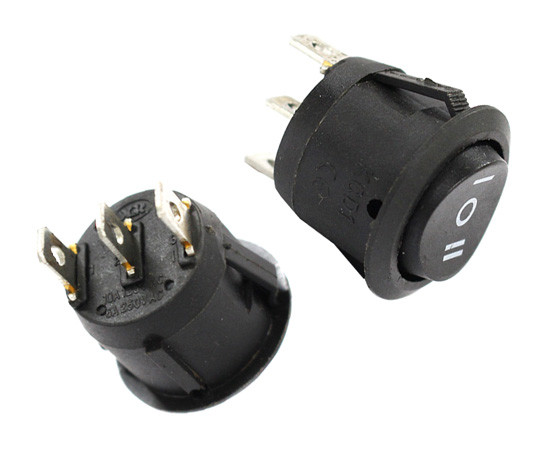

MRS103-9C6b; rocker switch;

Symbol Micros: PRZ MRS1039c6b II

358775

PRZ MRS1039c6b II

Contractor Symbol:

Case : Rys.MRS103-9C6b II

Datasheet

Technical drawing Add to favourites

3 stable positions; ON-OFF-ON; cap colour: black; SPDT; 3P; 10A 125VAC or 6A 250VAC; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Contacts rating:	10A 125V 6A 250V
Key button colour:	Black
Contacts configuration:	SPDT
Switching method:	ON-OFF-ON
Operating temperature (range):	-25°C ~ 85°C
Body colour:	Black
Accessories type:	N/A

All parameters

Manufacturer:: FILN Manufacturer part number: KCD1-103-5 RoHS Case style: Rys.MRS103-9C6b II

In stock:

250 pcs.

Quantity of pcs.	2+	15+	100+	300+	1000+
Net price (EUR)	0,5630	0,3123	0,2460	0,2321	0,2247

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/300 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	10A 125V 6A 250V
Key button colour:	Black
Contacts configuration:	SPDT
Switching method:	ON-OFF-ON
Operating temperature (range):	-25°C ~ 85°C
Body colour:	Black
Accessories type:	N/A
Manufacturer:	N/A
Type of switch:	Rocker
