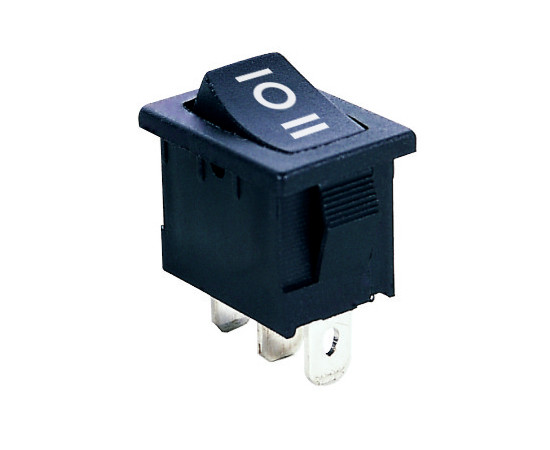

MRS103A-2C6b; rocker switch;

Symbol Micros: PRZ Mrs103a2c6b

74308

PRZ Mrs103a2c6b

Contractor Symbol:

Case : Rys.MRS103A-2C6b

Datasheet

Technical drawing Add to favourites

3 stable positions; ON-OFF-ON; cap colour: black; SPDT; 3P; 10A 125VAC or 6A 250VAC; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Contacts rating:	10A 125V 6A 250V
Key button colour:	Black
Contacts configuration:	SPDT
Switching method:	ON-OFF-ON
Operating temperature (range):	-25°C ~ 85°C
Body colour:	Black
Accessories type:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	10A 125V 6A 250V
Key button colour:	Black
Contacts configuration:	SPDT
Switching method:	ON-OFF-ON
Operating temperature (range):	-25°C ~ 85°C
Body colour:	Black
Accessories type:	N/A
Manufacturer:	N/A
Type of switch:	Rocker
