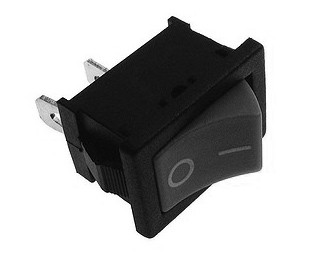

MRS111A-C3b; rocker switch;

Symbol Micros: PRZ Mrs111ac3b

26084

PRZ Mrs111ac3b

Contractor Symbol:

Case : Rys.MRS111A-C3b

Datasheet

Technical drawing Add to favourites

open cont. in non-actuated state; (ON)-OFF; cap colour: black; SPST; 2P; 10A 125VAC or 6A 250VAC; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Contacts rating:	10A 125V 6A 250V
Key button colour:	Black
Contacts configuration:	SPST
Switching method:	(ON)-OFF
Operating temperature (range):	-25°C ~ 85°C
Body colour:	Black
Accessories type:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	10A 125V 6A 250V
Key button colour:	Black
Contacts configuration:	SPST
Switching method:	(ON)-OFF
Operating temperature (range):	-25°C ~ 85°C
Body colour:	Black
Accessories type:	N/A
Manufacturer:	N/A
Type of switch:	Rocker
