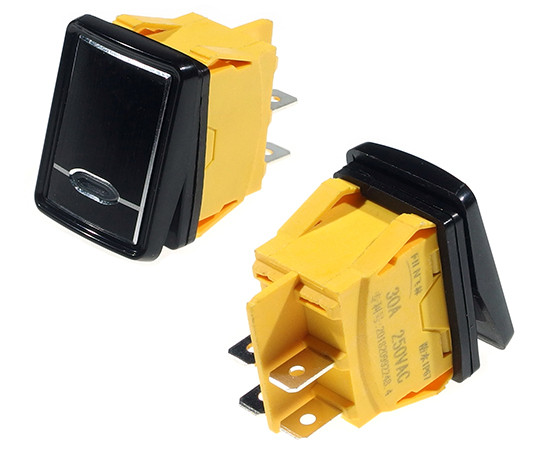

MRS201-9b; rocker switch;

Symbol Micros: PRZ MRS201-9b

231728

PRZ MRS201-9b

Contractor Symbol:

Case : Rys.MRS201-9b

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; cap colour: black; yellow housing; DPST; 4P; 20A 125VAC; 15A 250VAC; endurance: 20000 cycles; ambient temperature: -25°C+85°C

Parameters

Contacts rating:	20A 125V 15A 250V
Key button colour:	Black
Switching method:	ON-OFF
Contacts configuration:	DPST
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A
Body colour:	Black

All parameters

Manufacturer:: FILN Manufacturer part number: FL3-KCD4-201N-9 Black RoHS Case style: Rys.MRS201-9b

In stock:

25 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	3,2252	2,7870	2,5302	2,3653	2,3041

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

Manufacturer:: FILN Manufacturer part number: FL3-KCD4-201N-9 Black RoHS Case style: Rys.MRS201-9b

In stock:

5 pcs.

Quantity of pcs.	1+	3+	10+	30+	90+
Net price (EUR)	3,2652	2,8082	2,5373	2,4054	2,3323

Add to comparison tool Add inquiry (RFQ)

Packaging:
30 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	20A 125V 15A 250V
Key button colour:	Black
Switching method:	ON-OFF
Contacts configuration:	DPST
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A
Body colour:	Black
Manufacturer:	N/A
Type of switch:	Rocker
