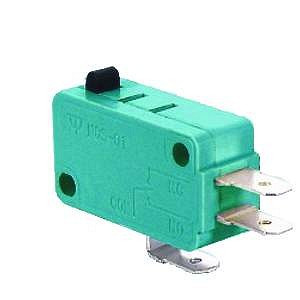

MSW-01; micro switch;

Symbol Micros: PRZ MSW01

37334

PRZ MSW01

Contractor Symbol:

Case : Rys.MSW-01

Datasheet

Technical drawing Add to favourites

10A; 250VAC; ON-(ON); SPDT; 3P; endurance: 100000 cycles; ambient temperature: -25°C+85°C; equivalent WLK-1

Parameters

Dimensions:	28,8x15,8x10,3mm
Contacts rating:	10A 250VAC
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch

All parameters

Manufacturer:: SWI Manufacturer part number: MSW-01 RoHS Case style: Rys.MSW-01

In stock:

100 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	0,9163	0,6077	0,5041	0,4546	0,4358

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-11-15

Quantity of pcs.: 500

• Parameters

Dimensions:	28,8x15,8x10,3mm
Contacts rating:	10A 250VAC
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
