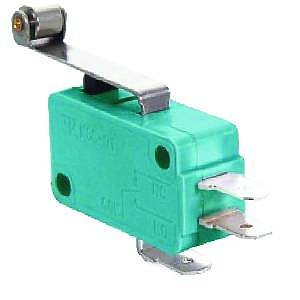

MSW-03A-25 micro switch

Symbol Micros: PRZ MSW03a-25

37357

PRZ MSW03a-25

Contractor Symbol:

Case : Rys.MSW-03A-25

Datasheet

Technical drawing Add to favourites

16A; 250VAC; ON-(ON); SPDT; 3P; L=25mm; endurance: 100000 cycles; ambient temperature: -25°C+85°C

Parameters

Dimensions:	28,8x15,8x10,3mm
Contacts rating:	16A 250VAC
Lever length:	25mm
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT

All parameters

Manufacturer:: SWI Manufacturer part number: MSW-03A L=25 RoHS Case style: Rys.MSW-03A-25

In stock:

500 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,1104	0,7784	0,6616	0,6031	0,5844

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/500 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	28,8x15,8x10,3mm
Contacts rating:	16A 250VAC
Lever length:	25mm
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
