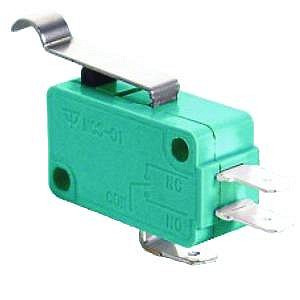

MSW-04A; micro switch;

Symbol Micros: PRZ MSW04a

37358

PRZ MSW04a

Contractor Symbol:

Case : Rys.MSW-04A

Datasheet

Technical drawing Add to favourites

16A; 250VAC; ON-(ON); SPDT; 3P; endurance: 100000 cycles; ambient temperature: -25°C+85°C

Parameters

Dimensions:	28,8x15,8x10,3mm
Contacts rating:	16A 250VAC
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch

All parameters

Manufacturer:: SWI Manufacturer part number: MSW-04A RoHS Case style: Rys.MSW-04A

In stock:

229 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	1,0140	0,6752	0,5569	0,5035	0,4826

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/700 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-11-10

Quantity of pcs.: 500

• Parameters

Dimensions:	28,8x15,8x10,3mm
Contacts rating:	16A 250VAC
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
