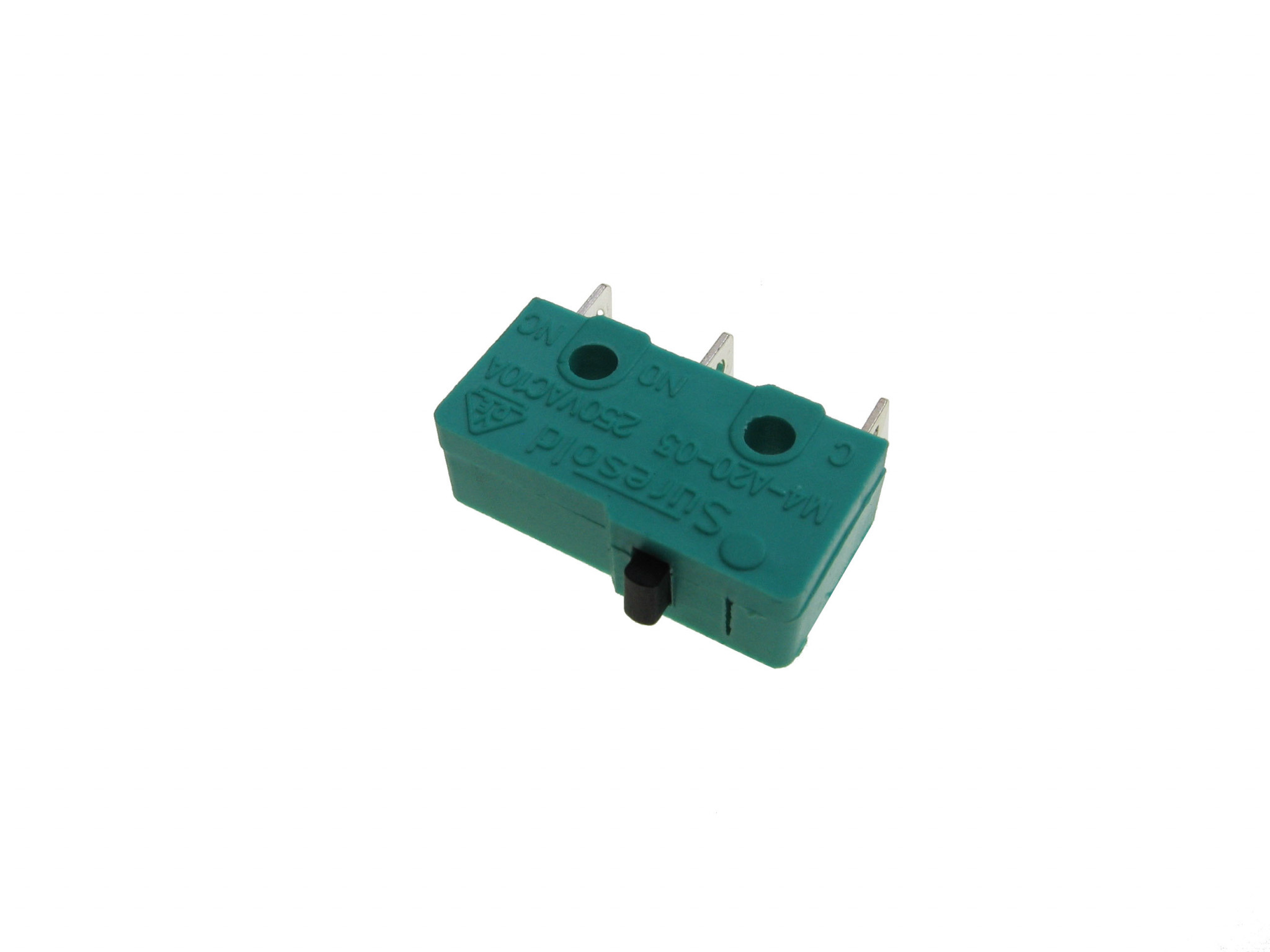

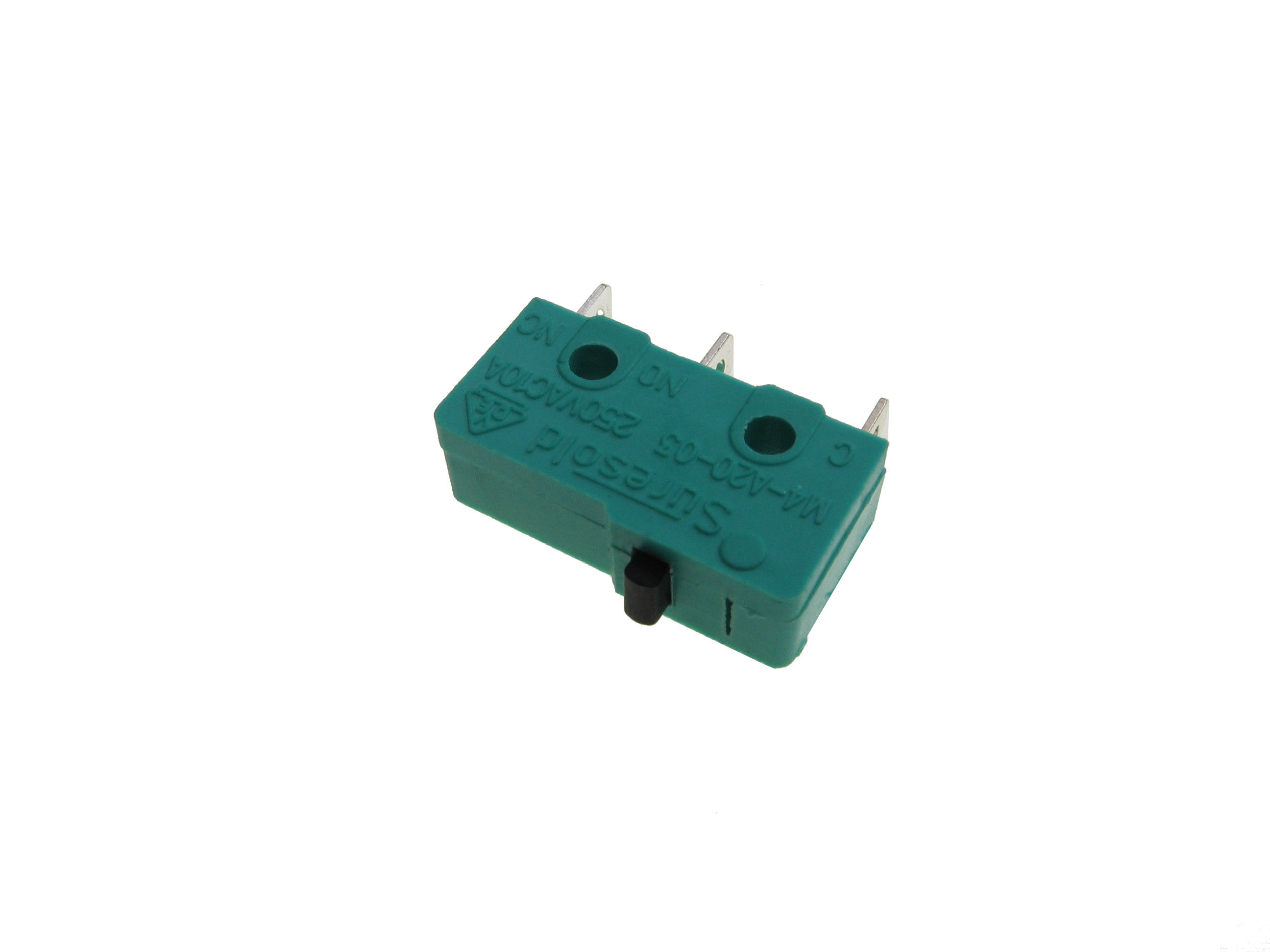

MSW-11B; micro switch;

Symbol Micros: PRZ MSW11b

18890

PRZ MSW11b

Contractor Symbol:

Case : Rys.MSW-11B

Datasheet

Technical drawing Add to favourites

3A, 250VAC; ON-(ON); SPDT; 3P; endurance: 100000 cycles; ambient temperature: -25°C+80°C

Parameters

Dimensions:	19,8x11x6,4mm
Contacts rating:	3A 250VAC
Operating temperature (range):	-25°C ~ 80°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	19,8x11x6,4mm
Contacts rating:	3A 250VAC
Operating temperature (range):	-25°C ~ 80°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
