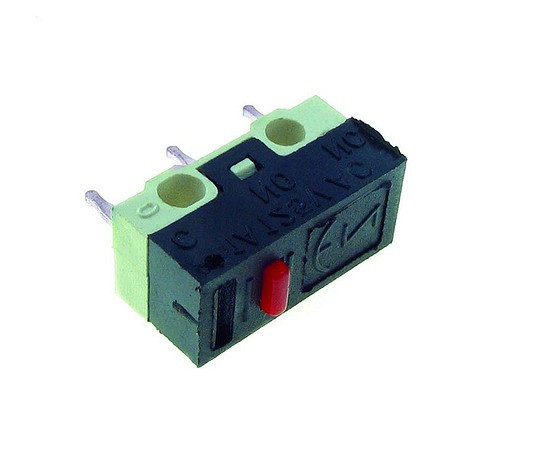

MSW-21; micro switch;

Symbol Micros: PRZ MSW21

12103

PRZ MSW21

Contractor Symbol:

Case : Rys.MSW-21

Datasheet

Technical drawing Add to favourites

1A; 125VAC, ON-(ON); SPDT; 3P; endurance: 30000 cycles; ambient temperature: -25°C+65°C

Parameters

Dimensions:	12,8x6,5x5,8mm
Contacts rating:	1A 125VAC
Operating temperature (range):	-25°C ~ 65°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch

All parameters

Manufacturer:: SWI Manufacturer part number: MSW-21 RoHS Case style: Rys.MSW-21

In stock:

500 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,3857	0,2139	0,1690	0,1534	0,1484

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-07-30

Quantity of pcs.: 1000

• Parameters

Dimensions:	12,8x6,5x5,8mm
Contacts rating:	1A 125VAC
Operating temperature (range):	-25°C ~ 65°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
