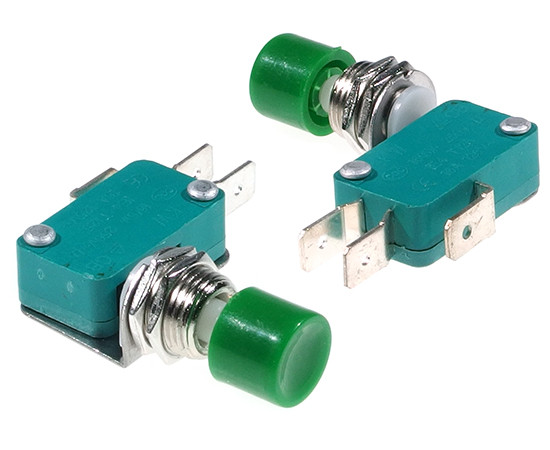

MSW-32; micro switch;

Symbol Micros: PRZ MSW32

250425

PRZ MSW32

Contractor Symbol:

Case : Rys.MSW32

Datasheet

Technical drawing Add to favourites

16A; 250VAC; OFF-(ON); SPDT; 3P; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Dimensions:	41x46xx12mm
Contacts rating:	16A 250VAC
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	OFF-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	41x46xx12mm
Contacts rating:	16A 250VAC
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	OFF-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
