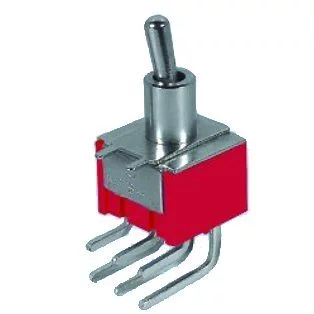

MTS203-C3; toggle switch;

Symbol Micros: PRZ Mts203c3

26013

PRZ Mts203c3

Contractor Symbol:

Case : Rys.MTS203-C3

Datasheet

Technical drawing Add to favourites

double pole; angled 90°; PCB; ON-OFF-ON; DPDT; 6P; 6A 125VAC; 3A 250VAC

Parameters

Switching method:	ON-OFF-ON
Contacts configuration:	DPDT
Contacts rating:	6A 125VAC 3A 250VAC
Kind of toggle:	Round
Type of outputs:	For printing
Accessories type:	N/A
Type of switch:	Lever

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Switching method:	ON-OFF-ON
Contacts configuration:	DPDT
Contacts rating:	6A 125VAC 3A 250VAC
Kind of toggle:	Round
Type of outputs:	For printing
Accessories type:	N/A
Type of switch:	Lever
