PRZ NDI-08H-V

Symbol Micros: PRZ NDI-08H-V

195080

PRZ NDI-08H-V

Contractor Symbol:

Case : Rys.NDI-08H-V

Datasheet

Technical drawing Add to favourites

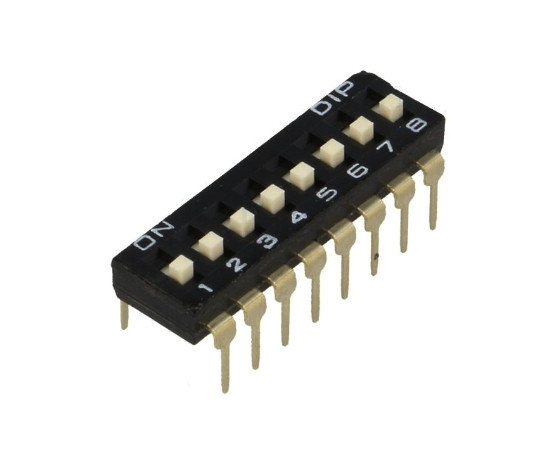

dip-switch IC type, 8 contacts, contacts gold-plated, raised actuator black colour, height 3.60mm

Parameters

Overall length:	21,26mm
Number of sections:	8
Manufacturer:	DIPTRONICS
Mechanical durability:	2000 cycles
Colour:	Black
Type of slider:	Raised
Mounting:	THT

All parameters

Manufacturer:: DIPTRONICS Manufacturer part number: NDI-08H-V Case style: Rys.NDI-08H-V

External warehouse:

2310 pcs.

Quantity of pcs.	22+ (Please wait for the order confirmation)
Net price (EUR)	0,4745

Add inquiry (RFQ)

Packaging:
22

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Overall length:	21,26mm
Number of sections:	8
Manufacturer:	DIPTRONICS
Mechanical durability:	2000 cycles
Colour:	Black
Type of slider:	Raised
Mounting:	THT
Terminal pitch [m]:	2,54mm
