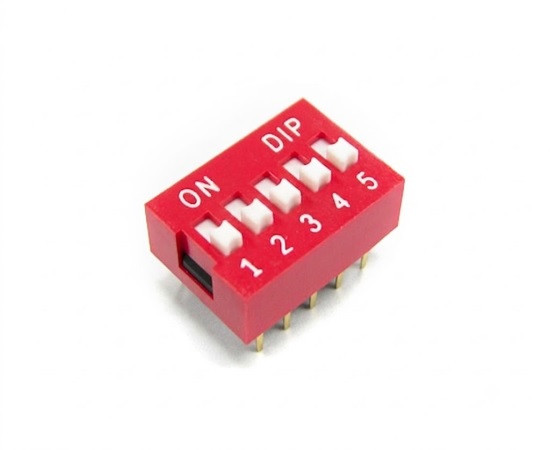

NDS-05V DIPTRONICS

Symbol Micros: PRZ NDS-05V

539341

PRZ NDS-05V

Contractor Symbol:

Case : Rys.NDS-05V

Datasheet

Add to favourites

dip-switch slide, 5 contact, red color, operating life 2000 cycles, height 7.05mm

Parameters

Overall length:	14,06mm
Manufacturer:	DIPTRONICS
Number of sections:	5
Colour:	Red
Mechanical durability:	1000 cycles
Type of slider:	Raised
Mounting:	THT

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Overall length:	14,06mm
Manufacturer:	DIPTRONICS
Number of sections:	5
Colour:	Red
Mechanical durability:	1000 cycles
Type of slider:	Raised
Mounting:	THT
Terminal pitch [m]:	2,54mm
