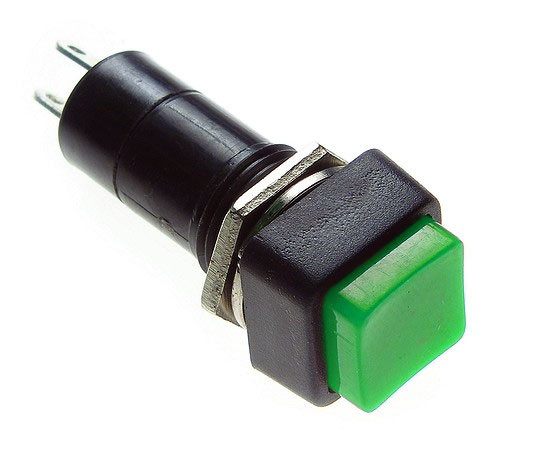

Switch PBS-12A Green

Symbol Micros: PRZ Pbs12ag

51082

PRZ Pbs12ag

Contractor Symbol:

Case : Rys.PBS-12Ag

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; green colour; square; 3A 125VAC 1A 250VAC; endurance: 50000 cycles

Parameters

Contacts rating:	3A 125VAC 1A 250VAC
Button colour:	Green
Switching method:	ON-OFF
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Backlight colour:	None
Button shape:	Square

All parameters

Manufacturer:: SWI Manufacturer part number: PBS-12A/G RoHS Case style: Rys.PBS-12Ag

In stock:

175 pcs.

Quantity of pcs.	2+	15+	100+	300+	1000+
Net price (EUR)	0,5415	0,3013	0,2378	0,2239	0,2168

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	3A 125VAC 1A 250VAC
Button colour:	Green
Switching method:	ON-OFF
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Backlight colour:	None
Button shape:	Square
Illumination:	None
