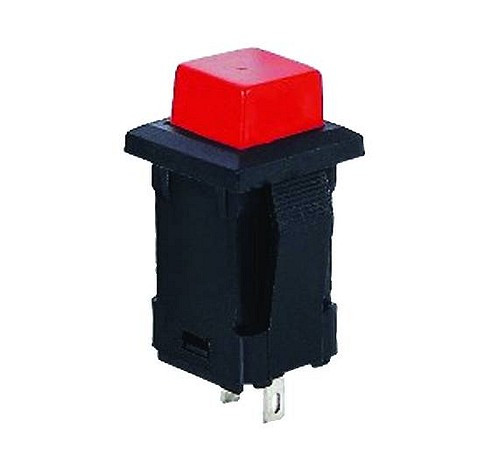

Switch PBS-15A Red

Symbol Micros: PRZ Pbs15ar

37298

PRZ Pbs15ar

Contractor Symbol:

Case : Rys.PBS-15Ar

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; red colour; square; 3A 125VAC 1A 250VAC; endurance: 50000 cycles

Parameters

Contacts rating:	3A 125VAC 1A 250VAC
Button colour:	Red
Switching method:	ON-OFF
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Backlight colour:	None
Button shape:	Square

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	3A 125VAC 1A 250VAC
Button colour:	Red
Switching method:	ON-OFF
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Backlight colour:	None
Button shape:	Square
Illumination:	None
