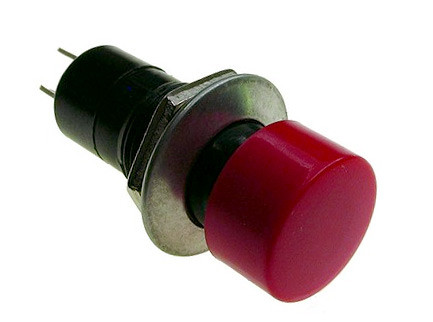

Switch PBS-16B Red

Symbol Micros: PRZ Pbs16br

21863

PRZ Pbs16br

Contractor Symbol:

Case : Rys.PBS-16Br

Datasheet

Technical drawing Add to favourites

momentary; OFF-(ON); (open type); red colour; round; 3A 125VAC 1A 250VAC; endurance: 50000 cycles

Parameters

Contacts rating:	3A 125VAC 1A 250VAC
Button colour:	Red
Switching method:	OFF-(ON)
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Backlight colour:	None
Button shape:	Round

All parameters

Manufacturer:: SWI Manufacturer part number: PBS-16B/R RoHS Case style: Rys.PBS-16Br

In stock:

491 pcs.

Quantity of pcs.	2+	15+	100+	200+	800+
Net price (EUR)	0,5758	0,3375	0,2714	0,2620	0,2502

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/800 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	3A 125VAC 1A 250VAC
Button colour:	Red
Switching method:	OFF-(ON)
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Backlight colour:	None
Button shape:	Round
Illumination:	None
