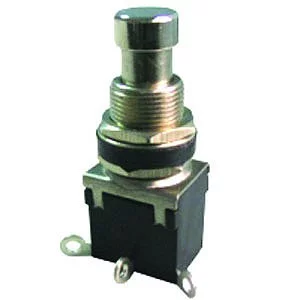

Switch PBS-24-102

Symbol Micros: PRZ Pbs24-102

17113

PRZ Pbs24-102

Contractor Symbol:

Case : Rys.PBS-24-102

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-ON; L=14.2mm; SPDT; 3P; round; 4A 125VAC 2A 250VAC; endurance: 50000 cycles

Parameters

Contacts rating:	4A 125VAC 2A 250VAC
Button colour:	Silver
Switching method:	ON-ON
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Backlight colour:	None
Button shape:	Round

All parameters

Manufacturer:: SWI Manufacturer part number: PBS-24-102 RoHS Case style: Rys.PBS-24-102

In stock:

290 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,9506	1,5548	1,3320	1,1969	1,1471

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/500 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-07-10

Quantity of pcs.: 500

• Parameters

Contacts rating:	4A 125VAC 2A 250VAC
Button colour:	Silver
Switching method:	ON-ON
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Backlight colour:	None
Button shape:	Round
Illumination:	None
