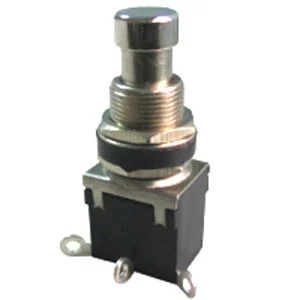

Switch PBS-24-112

Symbol Micros: PRZ Pbs24-112

17114

PRZ Pbs24-112

Contractor Symbol:

Case : Rys.PBS-24-112

Datasheet

Technical drawing Add to favourites

momentary; ON-(ON); L=14.2mm; SPDT; 3P; round; 4A 125VAC 2A 250VAC; endurance: 50000 cycles

Parameters

Contacts rating:	4A 125VAC 2A 250VAC
Button colour:	Silver
Switching method:	ON-(ON)
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Backlight colour:	None
Button shape:	Round

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-11-18

Quantity of pcs.: 200





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-01-30

Quantity of pcs.: 300

• Parameters

Contacts rating:	4A 125VAC 2A 250VAC
Button colour:	Silver
Switching method:	ON-(ON)
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Backlight colour:	None
Button shape:	Round
Illumination:	None
