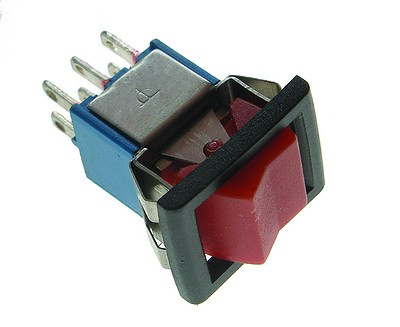

RLS202-E5; rocker switch;

Symbol Micros: PRZ Rls202-e5

18888

PRZ Rls202-e5

Contractor Symbol:

Case : Rys.RLS-202-E5

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-ON; solder type; DPDT; 6P; 6A 125VAC or 3A 250VAC; endurance: 10000 cycles; ambient temperature: -55°C+85°C

Parameters

Contacts rating:	6A 125V 3A 250V
Key button colour:	Red
Contacts configuration:	DPDT
Switching method:	ON-ON
Operating temperature (range):	-55°C ~ 85°C
Leads:	For soldering
Body colour:	Black

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	6A 125V 3A 250V
Key button colour:	Red
Contacts configuration:	DPDT
Switching method:	ON-ON
Operating temperature (range):	-55°C ~ 85°C
Leads:	For soldering
Body colour:	Black
Accessories type:	N/A
Manufacturer:	N/A
Type of switch:	Rocker
