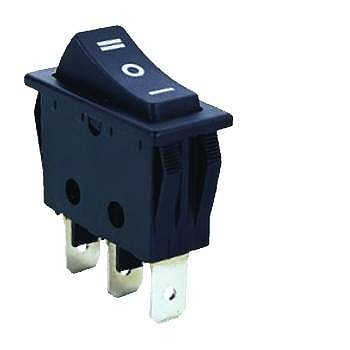

RS103-11C6b; rocker switch;

Symbol Micros: PRZ Rs103-11c6b

37028

PRZ Rs103-11c6b

Contractor Symbol:

Case : Rys.RS103-11C6b

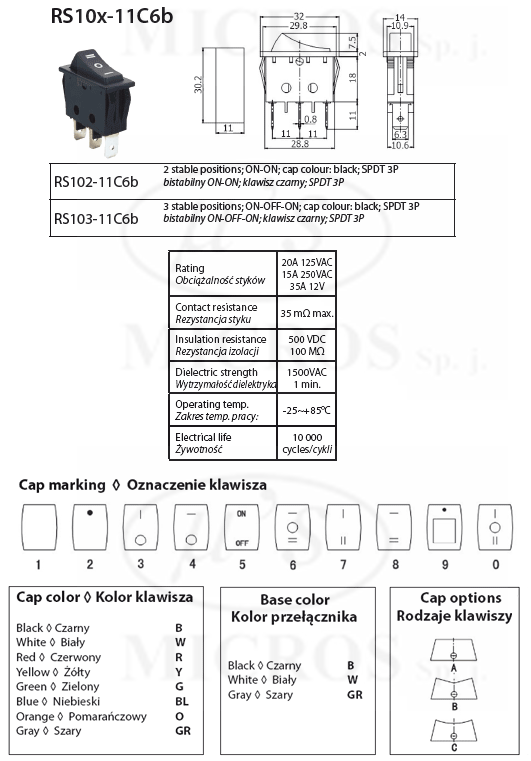

Datasheet

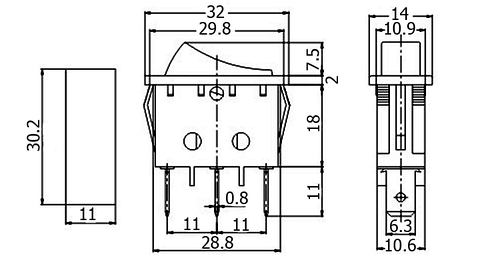

Technical drawing Add to favourites

3 stable positions; ON-OFF-ON; cap colour: black; SPDT; 3P; 20A 125VAC; 15A 250VAC; 35A 12VAC; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Contacts rating:	15A 250V 35A 12V
Key button colour:	Black
Contacts configuration:	SPDT
Switching method:	ON-OFF-ON
Operating temperature (range):	-25°C ~ 85°C
Body colour:	Black
Accessories type:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	15A 250V 35A 12V
Key button colour:	Black
Contacts configuration:	SPDT
Switching method:	ON-OFF-ON
Operating temperature (range):	-25°C ~ 85°C
Body colour:	Black
Accessories type:	N/A
Manufacturer:	N/A
Type of switch:	Rocker
