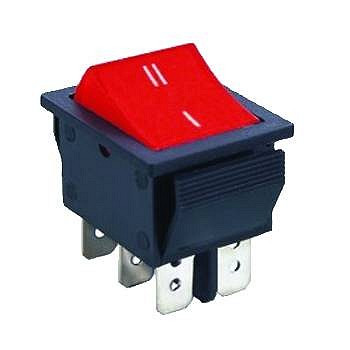

RS202-1C7r; rocker switch;

Symbol Micros: PRZ Rs2021c7r

14715

PRZ Rs2021c7r

Contractor Symbol:

Case : Rys.RS202-1C7r

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-ON; cap colour: red; double cap; DPDT; 6P; 20A 125VAC; 15A 250VAC; 35A 12VAC; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Contacts rating:	15A 250V 35A 12V
Key button colour:	Red
Contacts configuration:	DPDT
Switching method:	ON-ON
Operating temperature (range):	-25°C ~ 85°C
Body colour:	Black
Manufacturer:	N/A

All parameters

Manufacturer:: SWI Manufacturer part number: RS-202-1C7 RoHS Case style: Rys.RS202-1C7r

In stock:

150 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,1954	0,8777	0,7040	0,6034	0,5691

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

Manufacturer:: SWI Manufacturer part number: RS-202-1C7/R RoHS Case style: Rys.RS202-1C7r

In stock:

500 pcs.

Quantity of pcs.	1+	5+	50+	100+	500+
Net price (EUR)	1,1954	0,7954	0,6149	0,5943	0,5691

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/500 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	15A 250V 35A 12V
Key button colour:	Red
Contacts configuration:	DPDT
Switching method:	ON-ON
Operating temperature (range):	-25°C ~ 85°C
Body colour:	Black
Manufacturer:	N/A
Accessories type:	N/A
Type of switch:	Rocker
