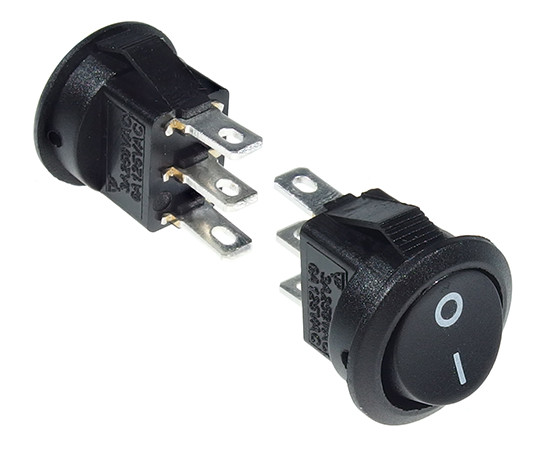

SMRS102-2b; rocker switch;

Symbol Micros: PRZ Smrs102-2b

292455

PRZ Smrs102-2b

Contractor Symbol:

Case : Rys.SMRS102-2b

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-ON; cap colour: black; SPDT; 3P; 6A 125VAC or 3A 250VAC; endurance: 10000 cycles; ambient temperature: -55°C+85°C

Parameters

Contacts rating:	6A 125V 3A 250V
Key button colour:	Black
Contacts configuration:	SPDT
Switching method:	ON-ON
Operating temperature (range):	-55°C ~ 85°C
Body colour:	Black
Accessories type:	N/A

All parameters

Manufacturer:: SWI Manufacturer part number: SMRS-102-2C3 RoHS Case style: Rys.SMRS102-2b

In stock:

500 pcs.

Quantity of pcs.	2+	10+	50+	250+	1000+
Net price (EUR)	0,4583	0,2778	0,2135	0,1907	0,1833

Add to comparison tool Add inquiry (RFQ)

Packaging:
250 Quantity (multiple: 1)

- +

Manufacturer:: SWI Manufacturer part number: SMRS-102-2C3/B RoHS Case style: Rys.SMRS102-2b

In stock:

0 pcs.

Quantity of pcs.	2+	10+	50+	250+	1000+
Net price (EUR)	0,4583	0,2778	0,2135	0,1907	0,1833

Add to comparison tool Add inquiry (RFQ)

Packaging:
250 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	6A 125V 3A 250V
Key button colour:	Black
Contacts configuration:	SPDT
Switching method:	ON-ON
Operating temperature (range):	-55°C ~ 85°C
Body colour:	Black
Accessories type:	N/A
Manufacturer:	N/A
Type of switch:	Rocker
