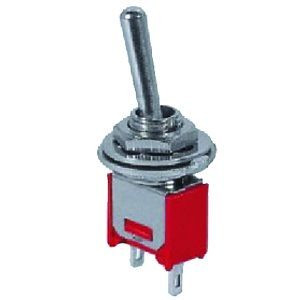

SMTS101-2A1; toggle switch;

Symbol Micros: PRZ Smts1012a1

14679

PRZ Smts1012a1

Contractor Symbol:

Case : Rys.SMTS101-2A1

Datasheet

Technical drawing Add to favourites

single pole; solder terminals; ON-OFF; SPST; 2P; 3A; 125V; 1.5A; 250V

Parameters

Contacts configuration:	SPST
Switching method:	ON-OFF
Type of outputs:	For soldering
Accessories type:	N/A
Contacts rating:	3A 125V 1.5A 250V
Kind of toggle:	Round
Type of switch:	Lever

All parameters

Manufacturer:: SWI Manufacturer part number: SMTS-101-2A1 RoHS Case style: Rys.SMTS101-2A1

In stock:

133 pcs.

Quantity of pcs.	2+	10+	50+	250+	1000+
Net price (EUR)	0,7107	0,4510	0,3565	0,3211	0,3093

Add to comparison tool Add inquiry (RFQ)

Packaging:
250 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-11-18

Quantity of pcs.: 500

• Parameters

Contacts configuration:	SPST
Switching method:	ON-OFF
Type of outputs:	For soldering
Accessories type:	N/A
Contacts rating:	3A 125V 1.5A 250V
Kind of toggle:	Round
Type of switch:	Lever
