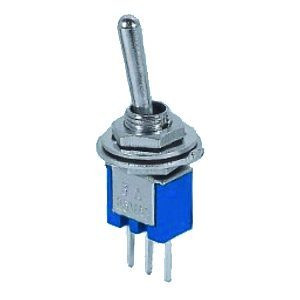

SMTS102-A2; toggle switch;

Symbol Micros: PRZ Smts102-a2

17123

PRZ Smts102-a2

Contractor Symbol:

Case : Rys.SMTS102-A2

Datasheet

Technical drawing Add to favourites

single pole PCB; ON-ON; SPDT; 3P; 3A; 125V; 1.5A; 250V

Parameters

Contacts configuration:	SPDT
Switching method:	ON-ON
Type of outputs:	For printing
Accessories type:	N/A
Contacts rating:	3A 125V 1.5A 250V
Kind of toggle:	Round
Type of switch:	Lever

All parameters

Manufacturer:: SWI Manufacturer part number: SMTS-102-A2 RoHS Case style: Rys.SMTS102-A2

In stock:

1290 pcs.

Quantity of pcs.	2+	10+	50+	250+	1000+
Net price (EUR)	0,5690	0,3447	0,2644	0,2361	0,2271

Add to comparison tool Add inquiry (RFQ)

Packaging:
250 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	SPDT
Switching method:	ON-ON
Type of outputs:	For printing
Accessories type:	N/A
Contacts rating:	3A 125V 1.5A 250V
Kind of toggle:	Round
Type of switch:	Lever
