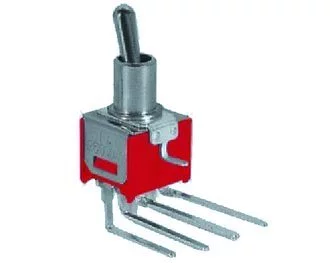

SMTS202-2C4; toggle switch;

Symbol Micros: PRZ Smts202-2c4

36299

PRZ Smts202-2c4

Contractor Symbol:

Case : Rys.SMTS202-2C4

Datasheet

Technical drawing Add to favourites

double poles; angled 90°; PCB; ON-ON; DPDT; 6P; 3A; 125V; 1.5A; 250V

Parameters

Contacts configuration:	DPDT
Switching method:	ON-ON
Type of outputs:	For printing
Accessories type:	N/A
Contacts rating:	3A 125V 1.5A 250V
Kind of toggle:	Round
Type of switch:	Lever

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	DPDT
Switching method:	ON-ON
Type of outputs:	For printing
Accessories type:	N/A
Contacts rating:	3A 125V 1.5A 250V
Kind of toggle:	Round
Type of switch:	Lever
