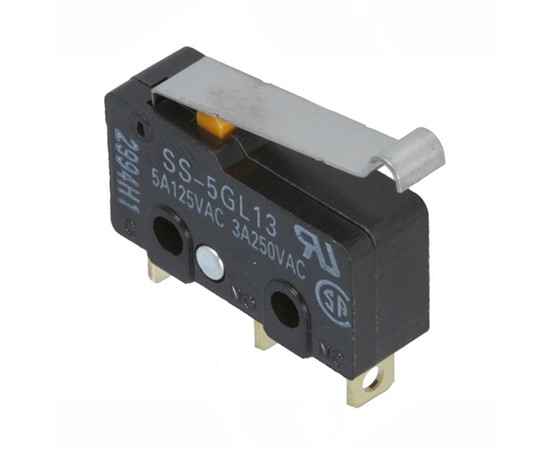

SS-5GL13 Omron

Symbol Micros: PRZ SS-5GL13

125767

PRZ SS-5GL13

Contractor Symbol:

Case : Rys.SS-5GL13

Datasheet

Technical drawing Add to favourites

Micro switch; soldering; dimensions: 19.8x6.4x10.2mm; 5A; 250VAC; ON-(ON) SPDT; 1.47N; endurance: 30000000 cycles; operating temperature: -25°C+80°C

Parameters

Dimensions:	19.8x6.4x10.2mm
Contacts rating:	5A 125VAC
Force:	1,47N
Operating temperature (range):	-25°C ~ 80°C
Leads:	For soldering
Manufacturer:	OMRON
Switching method:	ON-(ON)

All parameters

Manufacturer:: OMRON Manufacturer part number: SS5GL13 Case style: Rys.SS-5GL13

External warehouse:

1000 pcs.

Quantity of pcs.	500+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,5354

Add to comparison tool Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	19.8x6.4x10.2mm
Contacts rating:	5A 125VAC
Force:	1,47N
Operating temperature (range):	-25°C ~ 80°C
Leads:	For soldering
Manufacturer:	OMRON
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
