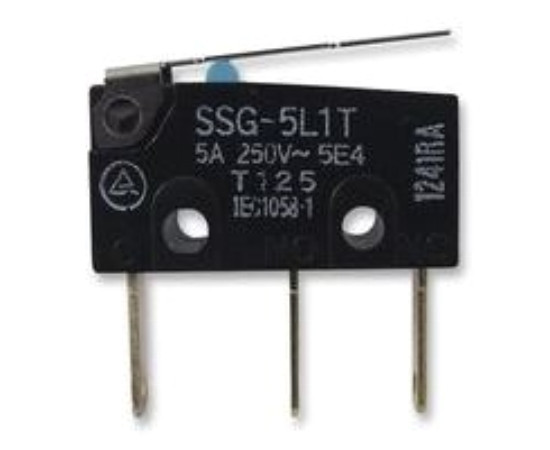

SSG-5L1T Omron

Symbol Micros: PRZ SSG-5L1T

297142

PRZ SSG-5L1T

Contractor Symbol:

Case : Rys.SSG-5L1T

Datasheet

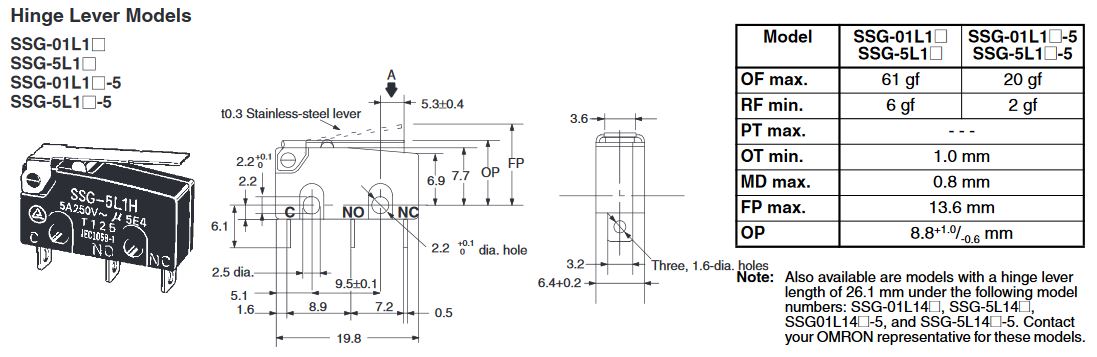

Technical drawing Add to favourites

Micro switch; conectors 2.8x0.5mm; right; dimensions: 19,8x6.4x7.7mm; r=2.5mm; 5A; 125VAC; ON-(ON); SPDT; 1.5N; endurance: 10000000 cycles; operating temperature: -25°C+125°C

Parameters

Dimensions:	19,8x6.4x7.7mm
Force:	1,5N
Contacts rating:	5A 125VAC
Lever length:	16,1mm
Operating temperature (range):	-25°C ~ 125°C
Leads:	Konektory 2.8x0.5mm
Terminal pitch:	2.5mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	19,8x6.4x7.7mm
Force:	1,5N
Contacts rating:	5A 125VAC
Lever length:	16,1mm
Operating temperature (range):	-25°C ~ 125°C
Leads:	Konektory 2.8x0.5mm
Terminal pitch:	2.5mm
Manufacturer:	OMRON
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
