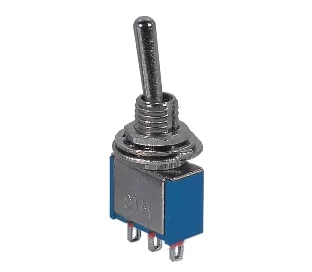

STM102; toggle switch;

Symbol Micros: PRZ Stm102

36510

PRZ Stm102

Contractor Symbol:

Case : Rys.STM102

Datasheet

Technical drawing Add to favourites

single pole; solder terminals; ON-ON; SPDT; 3P; 6A 125VAC; 3A 250VAC

Parameters

Switching method:	ON-ON
Contacts configuration:	SPDT
Contacts rating:	6A 125VAC 3A 250VAC
Kind of toggle:	Round
Type of outputs:	Soldering
Accessories type:	N/A
Type of switch:	Lever

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Switching method:	ON-ON
Contacts configuration:	SPDT
Contacts rating:	6A 125VAC 3A 250VAC
Kind of toggle:	Round
Type of outputs:	Soldering
Accessories type:	N/A
Type of switch:	Lever
