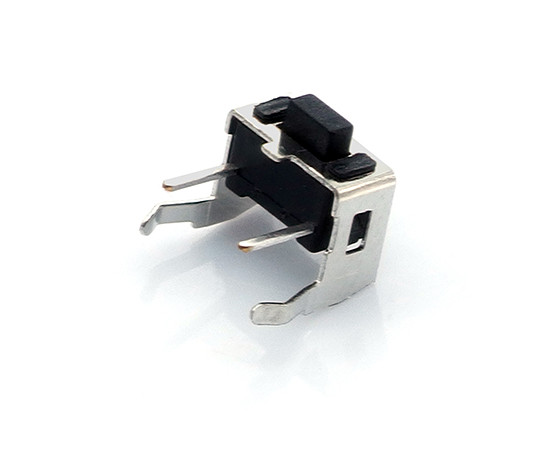

KAN3531B TACTRONIC Tact switch

Symbol Micros: PRZ Ts03v-050

14496

PRZ Ts03v-050

Contractor Symbol:

Case : Rys.TS-03V-050

Datasheet

Technical drawing Add to favourites

6x3.5mm H=5.0mm 12V DC, 50 mA, life 50000 cycles,travel 0.25+/-0.1mm,operating temp.-20°C~70°C angeld, for PCB (THT), operating force 160c50gf, return force 40gf min.

Parameters

Height [m]:	5,0mm
Dimensions:	6x3.5mm
Manufacturer:	TACTRONIC
Operating Force [gF]:	160gF
Mounting:	THT (Angled)

All parameters

Manufacturer:: TACTRONIC Manufacturer part number: KAN3531B-0501B GP RoHS Case style: Rys.TS-03V-050 Datasheet

In stock:

568 pcs.

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,2060	0,1031	0,0614	0,0510	0,0457

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

Manufacturer:: TACTRONIC Manufacturer part number: KAN3531B-0501B RoHS Case style: Rys.TS-03V-050 Datasheet

In stock:

0 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2294	0,1086	0,0607	0,0460	0,0417

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 1)

- +

• Parameters

Height [m]:	5,0mm
Dimensions:	6x3.5mm
Manufacturer:	TACTRONIC
Operating Force [gF]:	160gF
Mounting:	THT (Angled)
