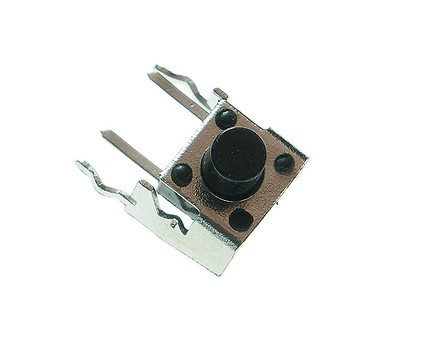

KAN0631 TACTRONIC Tact switch

Symbol Micros: PRZ Ts06v-095

26115

PRZ Ts06v-095

Contractor Symbol:

Case : Rys.TS-06v095

Datasheet

Technical drawing Add to favourites

6x6mm H=9.5mm, 12V DC, 50 mA, life 80000 cycles,travel 0.25+/-0.1mm,operating temp.-20°C~70°C angled, for PCB (THT), operating force 160c50gf, return force 40gf min.

Parameters

Height:	9,5mm
Dimensions:	6x6mm
Operating Force [gF]:	160gF
Manufacturer:	TACTRONIC
Mounting:	THT (Angled)

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-07-30

Quantity of pcs.: 30000

• Parameters

Height:	9,5mm
Dimensions:	6x6mm
Operating Force [gF]:	160gF
Manufacturer:	TACTRONIC
Mounting:	THT (Angled)
