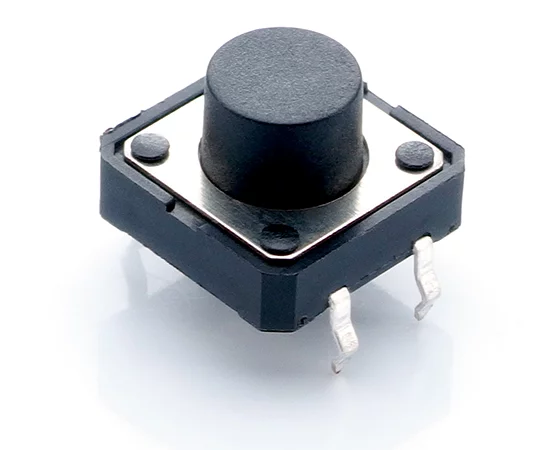

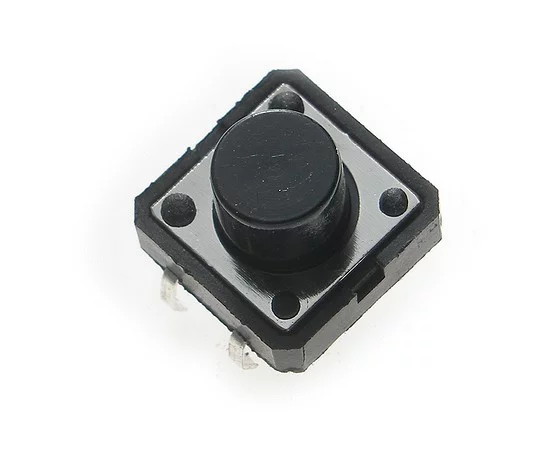

KAN1211 TACTRONIC Tact switch

Symbol Micros: PRZ Ts12-080

14128

PRZ Ts12-080

Contractor Symbol:

Case : Rys.TS-12-080

Datasheet

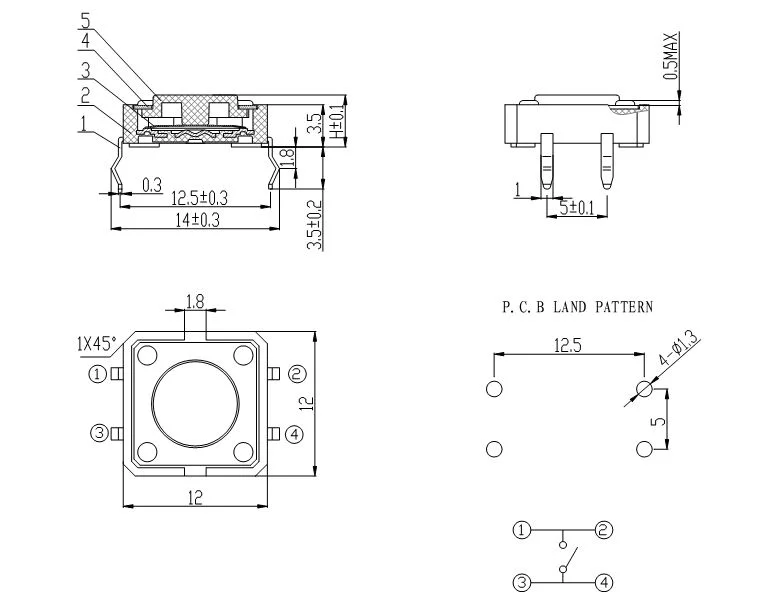

Technical drawing Add to favourites

12x12mm H=8.0mm, 12V DC, 50 mA, life 80000 cycles,travel 0.3+/-0.15mm,operating temp.-20°C~70°C straight, for PCB (THT), operating force 160c50gf, return force 40gf min.

Parameters

Height [m]:	8,0mm
Dimensions:	12x12mm
Manufacturer:	TACTRONIC
Operating Force [gF]:	160gF
Mounting:	THT
Spatial orientation:	Straight

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-06-15

Quantity of pcs.: 5000

• Parameters

Height [m]:	8,0mm
Dimensions:	12x12mm
Manufacturer:	TACTRONIC
Operating Force [gF]:	160gF
Mounting:	THT
Spatial orientation:	Straight
