PRZ Tsh22L05

Symbol Micros: PRZ Tsh22L05

54721

PRZ Tsh22L05

Contractor Symbol:

Case : Rys.Tsh22L05

Datasheet

Technical drawing Add to favourites

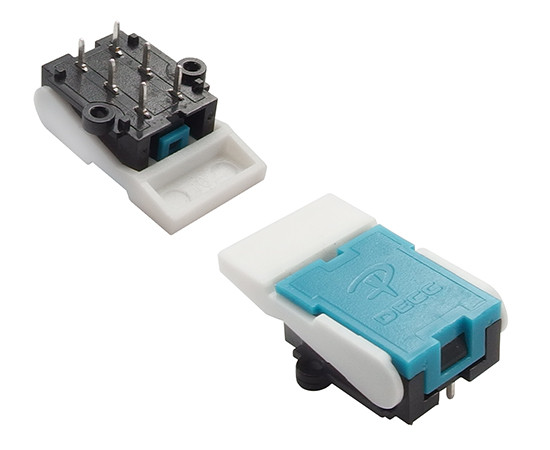

Hook switch Tsh22L05 2P2T 0.2A 50V DC

Parameters

Height [mm]:	7,8mm
Dimensions:	24x17.5mm
Operating Force [gF]:	200gF
Mechanical durability:	100000 cycles
Mounting:	THT

All parameters

Manufacturer:: CONNECTAR Manufacturer part number:   Case style: Rys.Tsh22L05

In stock:

4000 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,2926	0,1563	0,1216	0,1099	0,1063

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/5000 Quantity (multiple: 1)

- +

Manufacturer:: CONNECTAR Manufacturer part number:   Case style: Rys.Tsh22L05

In stock:

0 pcs.

Quantity of pcs.	3+	10+	20+	50+	220+
Net price (EUR)	0,2926	0,1875	0,1563	0,1320	0,1144

Add to comparison tool Add inquiry (RFQ)

Packaging:
220 Quantity (multiple: 1)

- +

Manufacturer:: CONNECTAR Manufacturer part number:   Case style: Rys.Tsh22L05

In stock:

2450 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,2926	0,1563	0,1216	0,1099	0,1063

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/8000 Quantity (multiple: 1)

- +

• Parameters

Height [mm]:	7,8mm
Dimensions:	24x17.5mm
Operating Force [gF]:	200gF
Mechanical durability:	100000 cycles
Mounting:	THT
