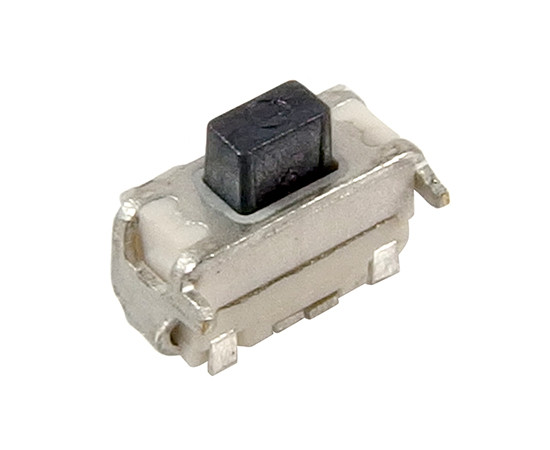

KAN1542 TACTRONIC Tact switch

Symbol Micros: PRZ Tss015-029t

120795

PRZ Tss015-029t

Contractor Symbol:

Case : Rys.Tss-015-029t

Datasheet

Technical drawing Add to favourites

3.9x1.5mm H=2.9mm (0.95mm), 12V DC, 50 mA, life 200000 cycles, travel 0.15c0.05mm SMD, operating force 230c30gf, return force 70gf min.

Parameters

Dimensions:	3,9x1,5mm
Height:	2,9mm
Operating Force [gF]:	230gF
Manufacturer:	TACTRONIC
Mechanical durability:	200000 cycles
Mounting:	SMD

All parameters

Manufacturer:: TACTRONIC Manufacturer part number: KAN1542-0290B1 TAPE GP RoHS Case style: Rys.Tss-015-029t Datasheet

In stock:

79 pcs.

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,2928	0,1606	0,1053	0,0909	0,0838

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	3,9x1,5mm
Height:	2,9mm
Operating Force [gF]:	230gF
Manufacturer:	TACTRONIC
Mechanical durability:	200000 cycles
Mounting:	SMD
