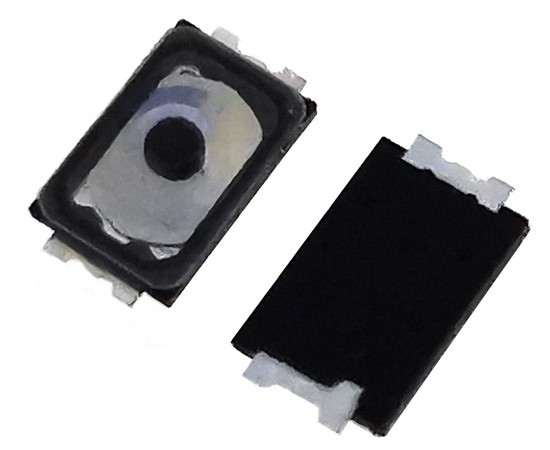

KAN2341 TACTRONIC Tact switch

Symbol Micros: PRZ Tss02-006t

269792

PRZ Tss02-006t

Contractor Symbol:

Case : Rys.Tss02-006t

Datasheet

Technical drawing Add to favourites

2x3mm H=0.6mm, 12V DC, 50 mA, life 300000 cycles, travel 0.13c0.05mm SMD, operating force 160c30gf, return force 40gf min.

Parameters

Dimensions:	2x3mm
Height [m]:	0,6mm
Operating Force [gF]:	160gF
Manufacturer:	TACTRONIC
Mechanical durability:	300000 cycles
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	2x3mm
Height [m]:	0,6mm
Operating Force [gF]:	160gF
Manufacturer:	TACTRONIC
Mechanical durability:	300000 cycles
Mounting:	SMD
