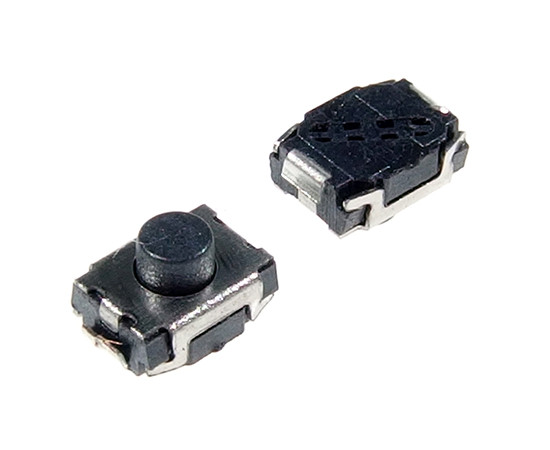

KAN3441 TACTRONIC Tact switch

Symbol Micros: PRZ Tss029-025t/25

215514

PRZ Tss029-025t/25

Contractor Symbol:

Case : Rys.Tss029-025t/26

Datasheet

Technical drawing Add to favourites

3x4mm H=2.5mm, 12V DC, 50 mA, life 100000 cycles, travel 0.15c0.05mm SMD, operating force 250c50gf, taped

Parameters

Dimensions:	3x4mm
Height [m]:	2,5mm
Operating Force [gF]:	250gF
Manufacturer:	TACTRONIC
Mechanical durability:	100000 cycles
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-12-05

Quantity of pcs.: 3000

• Parameters

Dimensions:	3x4mm
Height [m]:	2,5mm
Operating Force [gF]:	250gF
Manufacturer:	TACTRONIC
Mechanical durability:	100000 cycles
Mounting:	SMD
