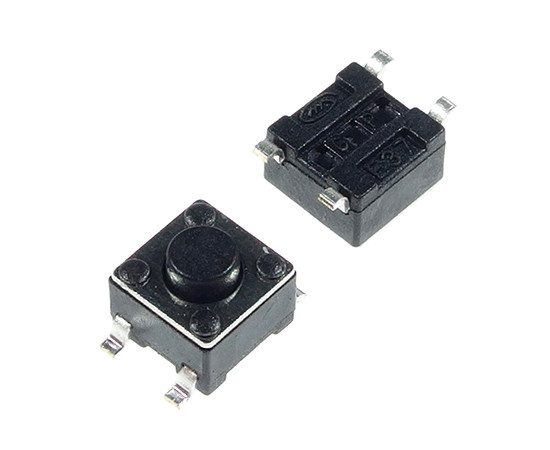

KAN4542 TACTRONIC Tact switch

Symbol Micros: PRZ Tss045-038t60

215518

PRZ Tss045-038t60

Contractor Symbol:

Case : Rys.Tss045-038t60

Datasheet

Technical drawing Add to favourites

4.5x4.5mm H=4.5, 12V DC, 50 mA, life 100000 cycles, travel 0.25c0.1mm, pady 6mm SMD, operating force 160c50gf, return force 40gF min. taped

Parameters

Dimensions:	4,5x4,5mm
Height [m]:	4,3mm
Operating Force [gF]:	160gF
Manufacturer:	TACTRONIC
Mechanical durability:	100000 cycles
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-07-22

Quantity of pcs.: 8000





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-06-15

Quantity of pcs.: 1000

• Parameters

Dimensions:	4,5x4,5mm
Height [m]:	4,3mm
Operating Force [gF]:	160gF
Manufacturer:	TACTRONIC
Mechanical durability:	100000 cycles
Mounting:	SMD
