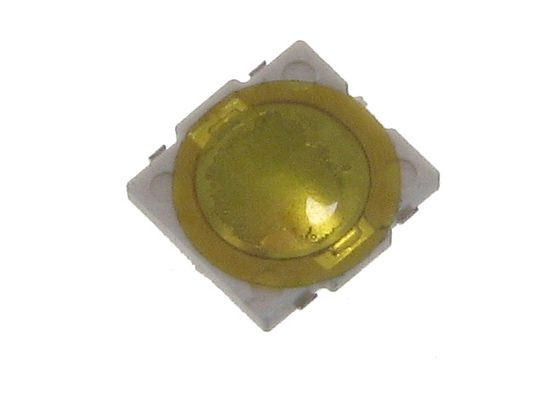

Tss048-006 Tact switch

Symbol Micros: PRZ Tss048-006

57355

PRZ Tss048-006

Contractor Symbol:

Case : Rys.Tss048-006

Datasheet

Technical drawing Add to favourites

4.8x4.8mm, H=0.65mm, 12V DC, 50 mA, life 100000 cycles, travel 0.25c0.1mm SMD, operating force 180c50gf, taped

Parameters

Dimensions:	4,8x4,8mm
Height [m]:	0,65mm
Operating Force [gF]:	180gF
Mechanical durability:	100000 cycles
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-07-22

Quantity of pcs.: 3000





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-09-30

Quantity of pcs.: 10000





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-06-22

Quantity of pcs.: 5000

• Parameters

Dimensions:	4,8x4,8mm
Height [m]:	0,65mm
Operating Force [gF]:	180gF
Mechanical durability:	100000 cycles
Mounting:	SMD
