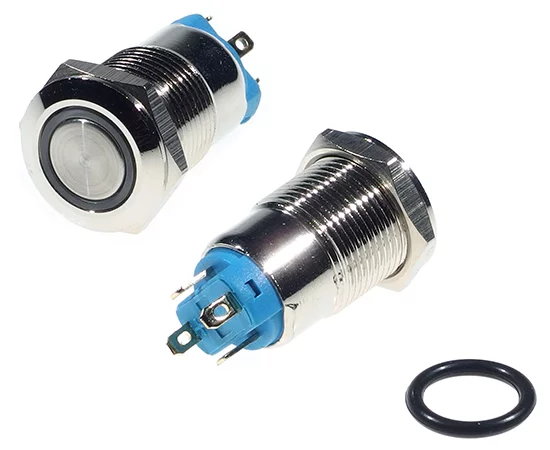

Vandal proof push button switch; W12F21EG12/C

Symbol Micros: PRZ W12F21EG12/C.

525678

PRZ W12F21EG12/C.

Contractor Symbol:

Case : Rys.W12F21EG12c

Datasheet

Technical drawing Add to favourites

12mm; alternate; 1NO1NC; copper; pin terminals; front shape-flat; illuminated LED 12V; ring; green 3A; 250VAC; IP65; IK8; electrical life: 50.000 cycles

Parameters

Contacts rating:	3A/250VAC
Backlight colour:	Green
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP65
Contacts configuration:	N/A
Leads:	For soldering

All parameters

Manufacturer:: FILN Manufacturer part number:   Case style: Rys.W12F21EG12c

In stock:

69 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	2,0026	1,6791	1,4925	1,3768	1,3343

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	3A/250VAC
Backlight colour:	Green
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP65
Contacts configuration:	N/A
Leads:	For soldering
Mounting hole diameter:	12mm
Illumination:	Edge
Illimination voltage:	12V
Switch operation:	Alternate
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
