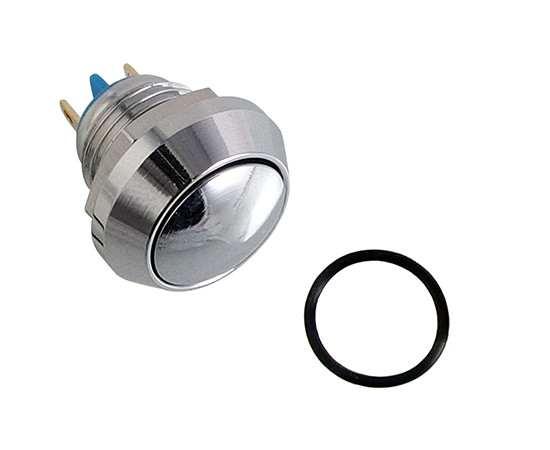

Vandal proof push button switch; W12P10R/C

Symbol Micros: PRZ W12P10R/C

114292

PRZ W12P10R/C

Contractor Symbol:

Case : Rys.W12P10R/C

Datasheet

Technical drawing Add to favourites

12mm; momentary; 1NO; brass; pin terminals; front shape-ball; 2A; 36VDC; IP67; IK08; electrical life: 40.000 cycles

Parameters

Contacts rating:	3A/250VAC
Backlight colour:	N/A
Switching method:	1NO1NC
Button shape:	Convex
IP rating:	IP65
Contacts configuration:	N/A
Leads:	For soldering

All parameters

Manufacturer:: YUMO Manufacturer part number:   Case style: Rys.W12P10R/C

In stock:

0 pcs.

Quantity of pcs.	1+	3+	10+	40+	200+
Net price (EUR)	2,9992	2,5906	2,3521	2,2128	2,1419

Add to comparison tool Add inquiry (RFQ)

Packaging:
40 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	3A/250VAC
Backlight colour:	N/A
Switching method:	1NO1NC
Button shape:	Convex
IP rating:	IP65
Contacts configuration:	N/A
Leads:	For soldering
Mounting hole diameter:	12mm
Illumination:	N/A
Illimination voltage:	N/A
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
