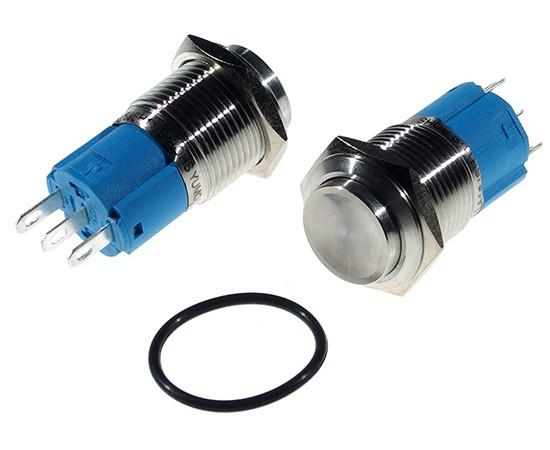

Vandal proof push button switch; W12P11/C

Symbol Micros: PRZ W12P11/C

118474

PRZ W12P11/C

Contractor Symbol:

Case : Rys.W12P11/C

Datasheet

Technical drawing Add to favourites

12mm; momentary; 1NO; white; pin terminals; front shape-ball; 2A; 36VDC; IP67; IK08; electrical life: 100.000 cycles

Parameters

Contacts rating:	2A/36VDC
Backlight colour:	N/A
Switching method:	1NO
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Leads:	For soldering

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	2A/36VDC
Backlight colour:	N/A
Switching method:	1NO
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Leads:	For soldering
Mounting hole diameter:	12mm
Illumination:	N/A
Illimination voltage:	N/A
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
