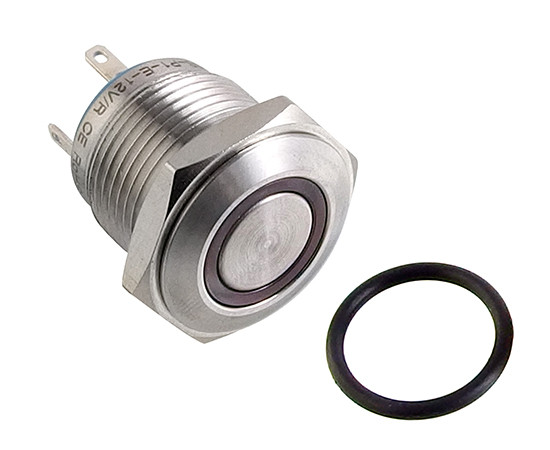

Vandal proof push button switch; W16F10RER12/S

Symbol Micros: PRZ W16F10RER12/S

114296

PRZ W16F10RER12/S

Contractor Symbol:

Case : Rys.W16F10RER12/S

Datasheet

Technical drawing Add to favourites

16mm; momentary; 1NO; stainless steel; pin terminals; front shape-flat; illuminated LED 12V; ring; red; 3A; IP67; electrical life: 40.000h

Parameters

Backlight colour:	Blue
Switching method:	1NO
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Mounting hole diameter:	16mm
Leads:	For soldering

All parameters

Manufacturer:: JSP Manufacturer part number:   Case style: Rys.W16F10RER12/S

In stock:

0 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	2,6526	2,1848	2,0070	1,9158	1,8947

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

Manufacturer:: JSP Manufacturer part number:   Case style: Rys.W16F10RER12/S

In stock:

20 pcs.

Quantity of pcs.	1+	3+	10+	40+	200+
Net price (EUR)	2,6526	2,2924	2,0795	1,9579	1,8947

Add to comparison tool Add inquiry (RFQ)

Packaging:
40 Quantity (multiple: 1)

- +

• Parameters

Backlight colour:	Blue
Switching method:	1NO
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Mounting hole diameter:	16mm
Leads:	For soldering
Illumination:	Edge
Illimination voltage:	12V
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
