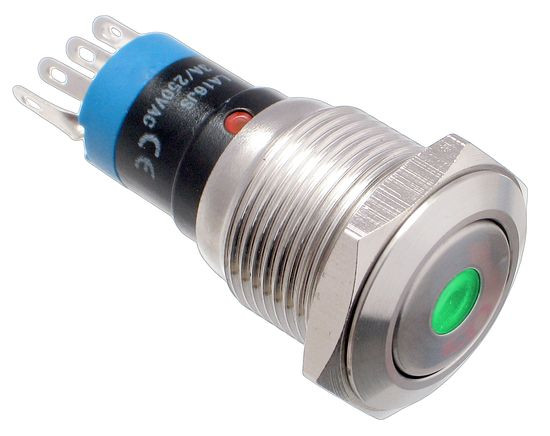

Vandal proof push button switch; W16F11DG12/S

Symbol Micros: PRZ W16F11DG12/S

59603

PRZ W16F11DG12/S

Contractor Symbol:

Case : Rys.W16F11DG12/S

Datasheet

Technical drawing Add to favourites

16mm; momentary; 1NO1NC; stainless steel; pin terminals; front shape-flat; illuminated LED 12V; dot; green; 3A; IP67; electrical life: 40.000h

Parameters

Backlight colour:	Green
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Leads:	For soldering
Mounting hole diameter:	16mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Backlight colour:	Green
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Leads:	For soldering
Mounting hole diameter:	16mm
Illumination:	Point
Illimination voltage:	12V
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
