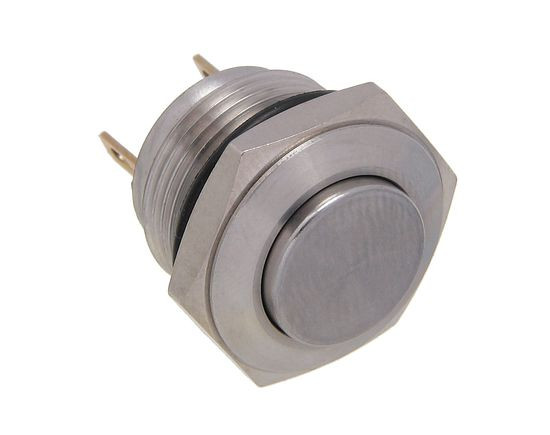

Vandal proof push button switch; W16H10R/S

Symbol Micros: PRZ W16H10R/S

54735

PRZ W16H10R/S

Contractor Symbol:

Case : Rys.W16H10R/S

Datasheet

Technical drawing Add to favourites

16mm; momentary; 1NO; stainless steel; pin terminals; front shape-high; round; 3A; 250VAC, IP67; electrical life: 50.000 cycles

Parameters

Contacts rating:	3A/250VAC
Backlight colour:	N/A
Switching method:	1NO
Button shape:	Convex
IP rating:	IP67
Contacts configuration:	N/A
Mounting hole diameter:	16mm

All parameters

Manufacturer:: JSP Manufacturer part number:   Case style: Rys.W16H10R/S

In stock:

40 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	2,6690	2,1988	2,0211	1,9275	1,9064

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	3A/250VAC
Backlight colour:	N/A
Switching method:	1NO
Button shape:	Convex
IP rating:	IP67
Contacts configuration:	N/A
Mounting hole diameter:	16mm
Leads:	For soldering
Illumination:	N/A
Illimination voltage:	N/A
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
