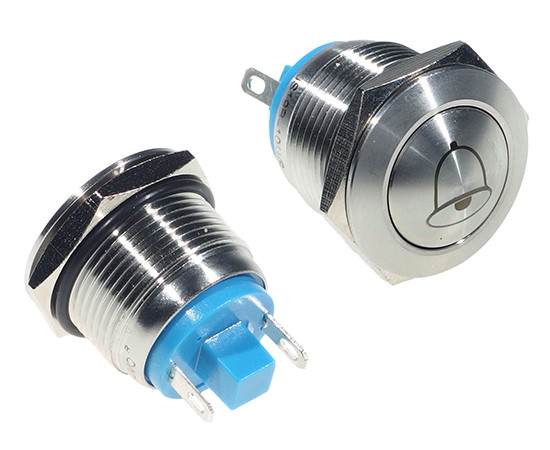

Vandal proof push button switch; W19B10R/Sz; with logo of bell

Symbol Micros: PRZ W19B10R/Sbellz

102100

PRZ W19B10R/Sbellz

Contractor Symbol:

Case : Rys.W19B10R/Sbell

Datasheet

Technical drawing Add to favourites

19mm; momentary; 1NO; stainless steel; pin terminals; front shape-domed 2A; 36VAC; IP65; electrical life: 200.000 cycles

Parameters

Contacts rating:	2A/36VAC
Backlight colour:	N/A
Switching method:	1NO
Button shape:	Convex
IP rating:	IP65
Leads:	For soldering
Contacts configuration:	N/A

All parameters

Manufacturer:: YUMO Manufacturer part number:   Case style: Rys.W19B10R/Sbell

In stock:

0 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	4,6668	4,0117	3,7577	3,6200	3,5891

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

Manufacturer:: YUMO Manufacturer part number:   Case style: Rys.W19B10R/Sbell

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	4,6668	4,0117	3,7577	3,6200	3,5891

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	2A/36VAC
Backlight colour:	N/A
Switching method:	1NO
Button shape:	Convex
IP rating:	IP65
Leads:	For soldering
Contacts configuration:	N/A
Mounting hole diameter:	19mm
Illumination:	N/A
Illimination voltage:	N/A
Manufacturer:	N/A
Switch operation:	Momentary
Button marking:	Bell logo
Type of switch:	Vandal-resistant
