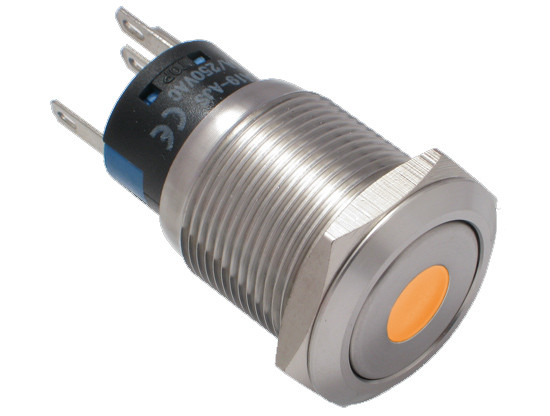

Vandal proof push button switch; W19F11DO12/S

Symbol Micros: PRZ W19F11DO12/S

78857

PRZ W19F11DO12/S

Contractor Symbol:

Case : Rys.W19F11DO12/S

Datasheet

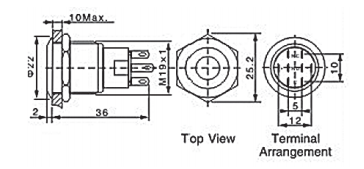

Technical drawing Add to favourites

19mm; momentary; 1NO1NC; stainless steel; pin terminals; front shape-flat; illuminated LED 12V; dot; orange; 3A; IP67; electrical life: 40.000h

Parameters

Backlight colour:	Orange
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Leads:	For soldering
Mounting hole diameter:	19mm

All parameters

Manufacturer:: HAN Manufacturer part number:   Case style: Rys.W19F11DO12/S

In stock:

40 pcs.

Quantity of pcs.	1+	3+	10+	40+	200+
Net price (EUR)	4,8119	4,2949	3,9832	3,7990	3,7022

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
40 Quantity (multiple: 1)

- +

• Parameters

Backlight colour:	Orange
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Leads:	For soldering
Mounting hole diameter:	19mm
Illumination:	Point
Illimination voltage:	12V
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
