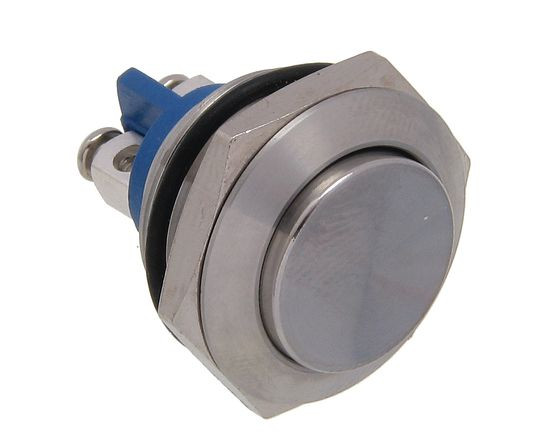

Vandal proof push button switch; W19H10/S

Symbol Micros: PRZ W19H10/S

54736

PRZ W19H10/S

Contractor Symbol:

Case : Rys.W19H10/S

Datasheet

Technical drawing Add to favourites

19mm; momentary; 1NO; stainless steel; screw terminals; front shape-high round; 2A; 36VAC, IP65; electrical life: 200.000 cycles

Parameters

Contacts rating:	2A/36VAC
Backlight colour:	N/A
Switching method:	1NO
Button shape:	Convex
IP rating:	IP65
Contacts configuration:	N/A
Mounting hole diameter:	19mm

All parameters

Manufacturer:: HAN Manufacturer part number:   Case style: Rys.W19H10/S

In stock:

38 pcs.

Quantity of pcs.	1+	3+	10+	40+	200+
Net price (EUR)	3,6681	3,2747	3,0367	2,8977	2,8223

Add to comparison tool Add inquiry (RFQ)

Packaging:
40 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	2A/36VAC
Backlight colour:	N/A
Switching method:	1NO
Button shape:	Convex
IP rating:	IP65
Contacts configuration:	N/A
Mounting hole diameter:	19mm
Leads:	Screw-on
Illumination:	N/A
Illimination voltage:	N/A
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
