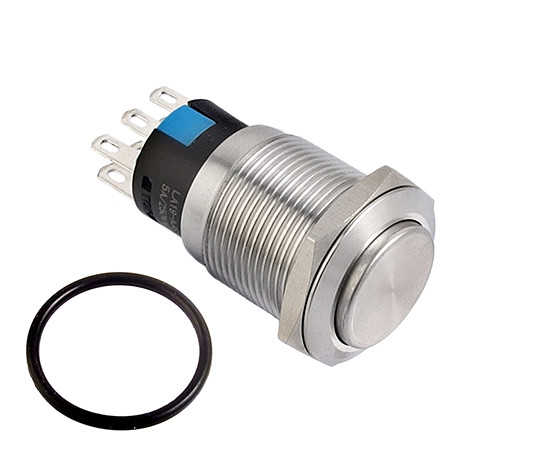

Vandal proof push button switch; W19H22/S

Symbol Micros: PRZ W19H22/S

107426

PRZ W19H22/S

Contractor Symbol:

Case : Rys.W19H22/S

Datasheet

Technical drawing Add to favourites

19mm; alternate; 2NO2NC; stainless steel; pin terminals; front shape-high round; 3A; 250VAC; IP67; electrical life:50.000 cycles

Parameters

Contacts rating:	3A/250VAC
Backlight colour:	N/A
Switching method:	2NO2NC
Button shape:	Convex
IP rating:	IP65
Contacts configuration:	N/A
Mounting hole diameter:	19mm

All parameters

Manufacturer:: JSP Manufacturer part number:   Case style: Rys.W19H22/S

In stock:

78 pcs.

Quantity of pcs.	1+	3+	10+	40+	200+
Net price (EUR)	5,2607	4,6953	4,3537	4,1534	4,0474

Add to comparison tool Add inquiry (RFQ)

Packaging:
40 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	3A/250VAC
Backlight colour:	N/A
Switching method:	2NO2NC
Button shape:	Convex
IP rating:	IP65
Contacts configuration:	N/A
Mounting hole diameter:	19mm
Leads:	For soldering
Illumination:	N/A
Illimination voltage:	N/A
Switch operation:	Alternate
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
